In the vast field of electrical engineering and wiring systems, The choice of wire gauge plays a crucial role in determining the effectiveness, the security and profitability of a given application. Among the different cable sizes available, he 2 AWG (American Wire Gauge) stands out for its impressive size, current carrying capacity and versatility.
The AWG system (American Wire Gauge) is a standardized wire gauge system used primarily in the United States to indicate the size of electrical wires. This system was developed at the end of the 19th century and has been widely adopted for its simplicity and practicality.. In AWG system, the smaller the numerical caliber, the larger the diameter of the cable. For example, un cable de 1AWG es mayor que un cable de 2 AWG, y ambos son significativamente mayores que un cable de 12 AWG.

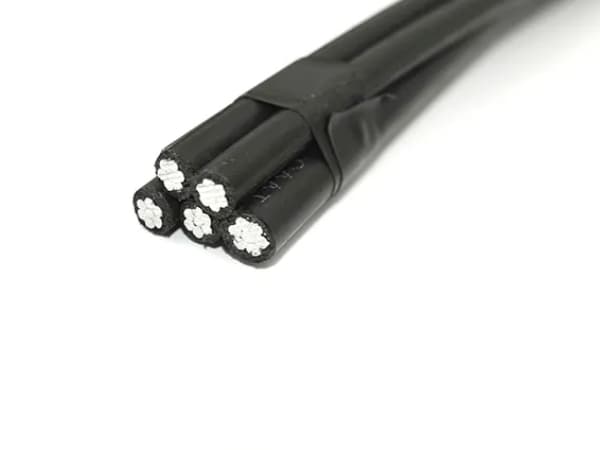

What is a cable 2 AWG?
2 AWG Cable, American Wire Gauge, is a specific standard size of electrical cable widely used in residential applications, commercial and industrial. 2 AWG indicates the diameter and cross section of the wire. This size is larger than most household cables, but less than that of high resistance industrial cables, making it suitable for a wide variety of mid-range applications.
Normally manufactured in copper or aluminum, he cable 2 AWG It is appreciated for its high conductivity, flexibility and durability. The cables 2 AWG copper are known for their superior conductivity and corrosion resistance, while aluminum ones are lighter and cheaper. Both types meet different needs depending on the project requirements.
The most common uses of cable 2 AWG son
Power distribution in small and medium scale electrical systems.
Connection of batteries in solar or grid-isolated systems
Grounding Applications
Automobile and boat wiring
Industrial machinery configuration
Understand cable specifications and features 2 AWG is essential to ensure you meet the requirements of your specific application.
How thick is a cable 2 AWG?
The thickness of a cable 2 AWG can be defined by its diameter and its cross section. These are the key measures:
Diameter (Copper): Approximately 0,2576 inches (6,54 mm)
Cross section area: 33,6 mm².

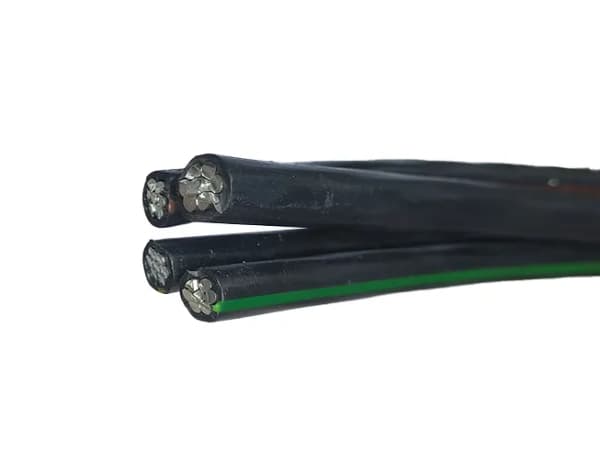

In the case of aluminum cable 2 AWG, the diameter is slightly larger due to the lower conductivity of aluminum compared to copper. Manufacturers compensate by increasing the cable size to achieve the same ampacity..
Thickness plays a critical role in the current carrying capacity and voltage drop of the cable. A thicker cable, like him 2 AWG, can carry more current over longer distances with less resistance, making it suitable for medium to high power applications.
To ensure correct installation, It is essential to use suitable connectors and tools compatible with power cables. 2 AWG, since its thickness can make it difficult to manipulate.
What is the difference between cable 2 AWG and the 2/0 AWG?
Although both the cables 2 AWG like 2/0 AWG are part of the American Wire Gauge system, differ significantly in size, capacity and applications. Here is a detailed comparison:
1.Size:
Wire 2 AWG: smaller, with an approximate diameter of 6,54 mm (0,2576 inches).
Cable 2/0 AWG: Larger with a diameter of approx. 0,3648 inches (9,26 mm).
2.Cross-sectional area:
Cable 2 AWG: 33,6 mm².
Cable 2/0 AWG: 67,4 mm².
3.Current capacity (ampacity):
Cable 2 AWG: can bear 115-130 amps (depending on insulation and environmental factors).
Cable 2/0 AWG: can bear 195-225 amps.
4. Applications:
Cable 2 AWG: Used in residential wiring, smaller battery banks and grounding.
Cable 2/0 AWG: Suitable for heavy duty applications such as large battery connections, industrial power systems and large scale grounding projects.
The choice between cables 2 AWG y 2/0 AWG depends on your specific project requirements, including current load, distance and type of application.
How many amps can a power cord handle? 2 AWG?
Cable ampacity 2 AWG varies depending on material (copper or aluminum), the type of insulation and environmental factors such as ambient temperature and installation method. Below are general cable ampacity guidelines 2 AWG:

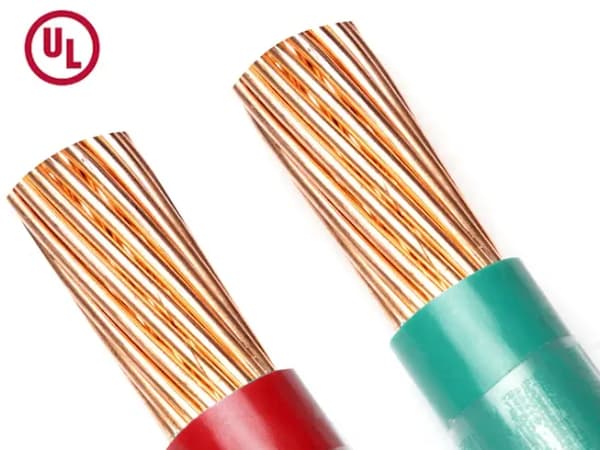

Copper wire 2 AWG:
in the open air: Until 170 amps
in conduit (60°C insulation): Until 95 amps
in conduit (insulation at 75°C): Until 115 amps
in conduit (insulation to 90 °C): Until 130 amps
Aluminum wire 2 AWG:
in the open air: Until 135 amps
in conduit (60°C insulation): Until 75 amps
in conduit (insulation at 75°C): Until 90 amps
in conduit (90°C insulation): Until 100 amps
Factors affecting ampacity:
Insulation material: Higher temperature insulation allows the cable to carry more current.
Installation method: Outdoor cables can dissipate heat better than those in ducts, which increases its ampacity.
Tension fall: For long distances, voltage drop must be taken into account, which may require increasing cable size.
Real applications:
For example, in residential facilities, A copper cable is usually used. 2 AWG with 75°C insulation for subpanel feeders carrying up to 115 amps. In industrial environments, Free air installations allow the same cable to carry more current due to better heat dissipation.
Aplicaciones del cable 2 AWG
Electrical distribution systems
2AWG cable is commonly used in electrical distribution systems, especially in commercial and industrial environments. It is suitable for transporting high currents over long distances, making it the ideal choice for main power and busbars in electrical panels. In large buildings and industrial facilities, 2AWG cable is often used to distribute power from the main electrical service to various sub-switchboards and equipment.
Battery cables and automotive applications
In the automobile industry, 2AWG wire is frequently used for battery cables and other high current applications. Can withstand the high currents needed to start and run large motors, as well as the demands of electric vehicles and hybrid systems. The rugged construction and high current carrying capacity of the 2AWG cable ensure reliable performance and safety in automotive applications..
Welding and industrial machinery
Welding machines and industrial machinery often require high currents to operate effectively.. 2AWG cable is commonly used in these applications to provide a stable and reliable power supply. Its ability to handle high currents and resist overheating makes it an excellent choice for welding cables and other high-power industrial applications..
Solar panels and renewable energy systems
In renewable energy systems, such as solar panels and wind turbines, 2AWG cable is used to connect the various components and transmit power to the grid or battery storage systems. Large 2AWG wire cross section minimizes voltage drop and power loss, ensuring efficient power transfer and maximum energy capture.
Elección del cable 2 AWG adecuado
When selecting a 2AWG cable for a specific application, Several factors must be considered to ensure optimal performance and safety:
Material composition
Copper and aluminum are the main materials used in 2AWG cables. Copper offers superior conductivity and corrosion resistance, but it is more expensive. Aluminum is lighter and cheaper, but its conductivity is slightly lower. The choice between these materials often depends on application requirements and budget constraints..
Isolation
The insulating material surrounding the cable is crucial for safety and performance. The different types of insulation, like thermoplastic, PVC and cross-linked polyethylene (XLPE), offer different levels of heat resistance, flexibility and durability. Choosing the proper insulation ensures that the cable can withstand the operating environment and meet safety standards.
Length and number of conductors
Cable length and number of conductors (single-conductor cables vs. multi-conductor cables) will affect its current carrying capacity and overall performance. Longer lengths may require heavier gauge wires to compensate for voltage drop, while multi-conductor cables can simplify installation and maintenance.
Certifications and standards

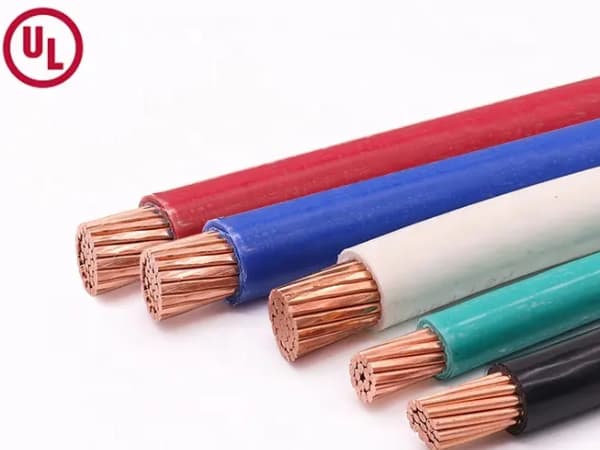

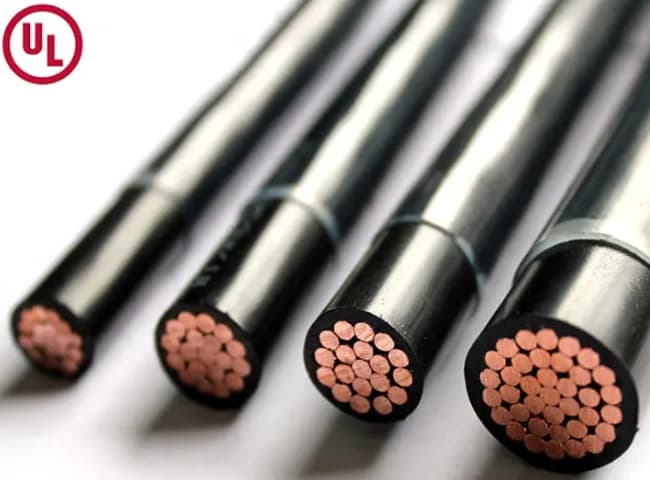

It is essential to ensure that your 2AWG cable meets relevant industry standards and certifications. Certifications such as UL (Underwriters Laboratories), CSA (Canadian Standards Association) y CE (European Conformity) indicate that the cable has been tested and approved for safety and performance.
Supplier Reliability
Choosing a trusted supplier is crucial to getting high-quality 2AWG cable. Reliable suppliers offer consistent quality, punctual delivery and technical assistance, ensuring the cable meets project specifications and expectations.
Conclusion
In conclusion, 2AWG cable is a versatile, high-performance electrical cable that plays a vital role in numerous applications across various industries.. Its important cross section, Its high current carrying capacity and robust construction make it the ideal choice for high power applications, as electrical distribution systems, battery cables, welding machines and renewable energy systems. Although aspects such as weight must be taken into account, flexibility and cost, The long-term cost-effectiveness and safety benefits of 2AWG cable make it a valuable investment in reliable and efficient electrical systems.. As technology continues to advance, New materials and constructions will further improve the performance and capabilities of 2AWG cable, opening new possibilities for use in innovative and emerging applications.
