Among the many types of cables available, control cables and power cables are two of the most used. Despite their similarities, These cables have different purposes and are designed to meet different requirements. Understanding the differences between control cables and power cables is critical to making informed decisions when selecting cables for various applications..
1.What is a control cable?

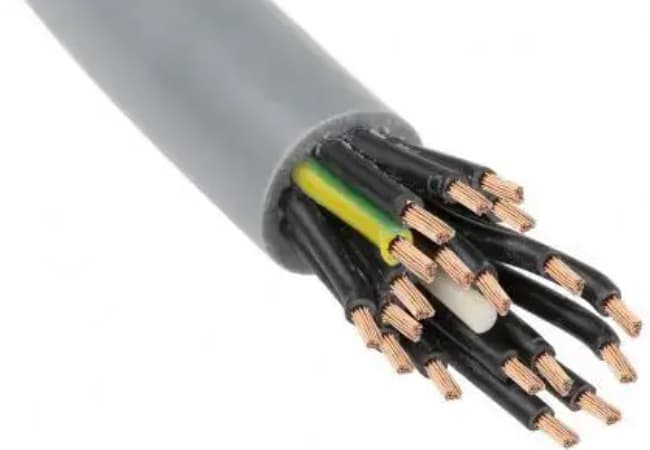

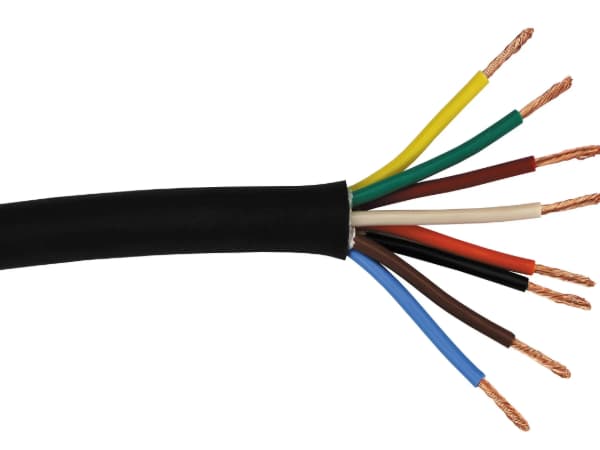

And control cable is a multi-core cable designed to carry low voltage signals that facilitate the control and supervision of electrical systems. These cables are commonly used in automation systems, machinery and control panels where precision and reliability are paramount. Control cables transmit data or control signals, but not significant amounts of electrical energy.
Main characteristics of control cables:
Low nominal voltage, usually up to 600 V.
Multiple drivers (until 61 drivers) to handle multiple control functions simultaneously.
Shielding to protect against electromagnetic interference (EMI).
Insulation materials such as PVC, XLPE or PE to ensure safety and flexibility.
Great flexibility to move within machinery or equipment.
Control Cable Applications:
Industrial automation and robotics.
Conveyors and assembly lines.
Control and instrumentation panels.
Sensor connection, relays and switches.
2.What is a power cord?

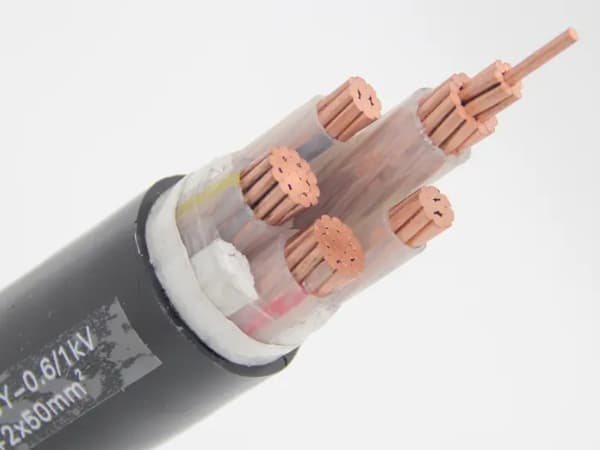

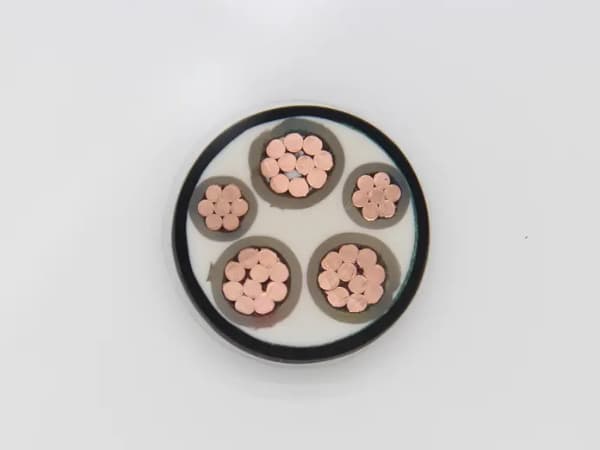

A power cord, for his part, It is designed to transmit electrical energy from a power source to electrical equipment. These cables are designed to withstand high voltages and currents, so they are suitable for powering heavy machinery, transformers and utility systems.
Main characteristics of power cables:
High voltage rating, from 1 kV hasta 400 kV.
Thicker conductors to handle higher currents.
Strong insulation materials, like XLPE, EPR or rubber, to withstand high stress.
They may or may not include shielding, depending on the application.
They tend to have fewer drivers (1-4 drivers) that the control cables.
Power Cable Applications:
Energy transmission and distribution networks.
Connection of industrial machinery and equipment.
Utility Lines, both underground and aerial.
Residential electrical systems, commercial and industrial.
3.Differences between control cable and power cable
Although both control and power cables are essential in electrical systems, Their differences lie in their purpose, design and operational capabilities. Below you will find a detailed comparison:
| Feature | control cable | Power cord |
|---|---|---|
| Purpose | Transmits low voltage signals for control and surveillance | Transmits low voltage and high voltage power |
| Nominal voltage | Until 600 V | 1 kV a 400 kV |
| Current capacity | Low | Alta |
| Core count | Multiple (until 61 cores) | Less (1-5 cores) |
| Armor | Normally shielded for EMI protection | Shielding depends on the application |
| insulating material | PVC, XLPE, PE | XLPE, EPR, rubber |
| Flexibility | Alta | Low |
| Applications | Control panels, automation systems | Powering equipment and networks |
| Size and diameter | smallest diameter, lightweight | Larger diameter, higher weight |
| Cost | Baja | Higher |
4.Detailed differences between control cable and power cable
a) Rated voltage and current
Control cables are designed for low voltage applications and can carry signals up to 600V. Its main function is to allow control and supervision of equipment, more than transferring energy.
On the contrary, Power cables are built to withstand much higher voltages, often higher than 400 kV in high voltage transmission lines. These cables also handle higher current flows, making them indispensable for heavy applications.
b) Design and construction
Control cables: Multiple control cable cores allow simultaneous operation of multiple control functions. Besides, The shielding of these cables prevents signal interference, which is critical in environments with high electromagnetic activity.
Power cables: These cables feature thicker conductors and insulation to safely withstand high electrical loads.. Power cables are usually shielded or shielded for added protection in industrial or outdoor environments.
c) Applications
Control cables are ideal for situations where precise control and low power are required, as in programmable logic controllers (PLC), instrumentation and automated systems.
Power cables are essential for transmitting electricity to high-power equipment such as motors., generators and transformers. They are also used in underground and overhead power transmission lines..
d) Flexibility and durability
Control cables are designed to be very flexible, which makes it easier to install in tight spaces or on moving parts of machinery.
power cables, although less flexible, They are more robust and durable to withstand adverse environmental conditions and mechanical stresses.
e) Economic implications
Control cables are typically less expensive due to their smaller size and less material requirements..
Power cables are more expensive due to the larger size of their conductors, to improved insulation and durability requirements.
5.When to use control cables vs. power cables
Choosing the right cable depends on the specific requirements of your application:
Use control cables when:
Need to transmit control signals or commands.
EMI protection is essential.
Flexibility and multi-core configurations required.
Applications involve low voltage and current, such as automation systems or control panels.
Use power cords when:
High voltage and current transmission is needed.
The application requires powering heavy machinery or equipment.
Long distance power transmission required.
Durability and environmental resistance are essential.
