What is Dog Conductor ACSR and price?

The ACSR driver (Aluminum Conductor Steel Reinforced) It is one of the most used cables in the electrical industry, especially for high voltage transmission and distribution lines. In particular, The ACSR Dog Conductor is a variant of this type of cable, specifically designed to offer high tensile strength, good electrical conductivity and durability under adverse weather conditions. In this article, We will explore what is ACSR Dog Conductor, their technical specifications, their applications, los factors that affect your price, and how to carry out your installation and maintenance.

What is the ACSR Dog Driver?

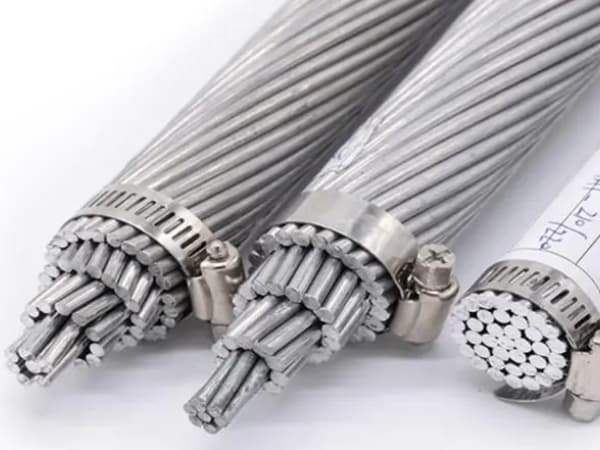

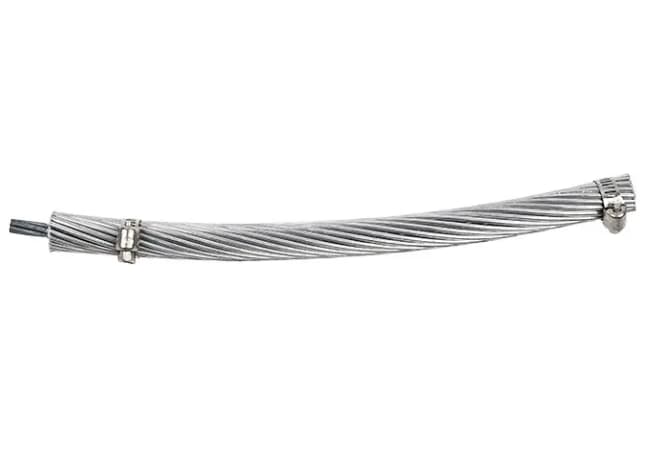

He ACSR Dog Conductor It is a type of composite conductor that combines a steel core with aluminum wires. The structure of the cable is formed by the combination of these two materials to offer the best properties of both.: steel provides tensile strength, while aluminum guarantees excellent electrical conductivity. The name “Dog” refers to a type of ACSR cable configuration commonly used in overhead power transmission lines.

ACSR cables are designed to carry electricity over long distances, so they must be strong enough to withstand the stress of the transmission towers, and at the same time, be efficient in conducting electricity. He ACSR Dog It is particularly useful in applications requiring a combination of high load capacity and electrical driving efficiency..

ACSR Dog Driver Specifications

Next, We will detail the most common technical specifications of the drivers ACSR Dog:

1. Materials:
   • Aluminum: Aluminum is used for its high electrical conductivity and low weight compared to other metals.. Aluminum is corrosion resistant and helps reduce resistance losses.
   • Steel: Steel is used as a reinforcing core to provide mechanical strength and prevent the conductor from stretching or breaking under excessive stresses. Steel is stronger than aluminum, but less driver, so it is used in smaller quantities.
2. Driver diameter: He ACSR Dog conductor diameter varies depending on size and specific application. Common diameters range from 6 mm up to 25 mm or more. The larger the diameter, the greater the electrical conduction capacity and tensile strength of the conductor.
3. Current capacity: Depending on driver size, and ACSR Dog can carry different amounts of current. For example, a conductor with a larger diameter will have a higher current capacity due to its larger cross-sectional area.
4. Tensile strength: One of the most notable advantages of ACSR Dog Conductor is its tensile strength, making it suitable for long distance power transmission applications. Steel core cables have high tensile strength, allowing them to withstand high stresses without breaking.
5. Corrosion resistance: ACSR Dog conductors have excellent corrosion resistance, making them ideal for use in outdoor environments and in areas where humidity and atmospheric elements can damage other materials.
6. Operating temperature: These conductors can operate in a wide temperature range., generally between -40°C y 80°C, making them ideal for a variety of weather conditions.

Applications of the ACSR Dog Driver

He ACSR Dog Conductor has multiple applications, especially in the industry electricity and the communication. Here we highlight the main applications:

1. Overhead transmission lines: He ACSR Dog is widely used in high voltage transmission lines. Its high tensile strength and ability to transport large amounts of electricity make it ideal for long distances., even in rural and difficult to access areas. Besides, Its design allows its installation in adverse weather conditions.
2. Power distribution: At the local level, The ACSR Dog is also used in power distribution, connecting substations to homes and businesses. High electrical conductivity allows efficient energy transmission without large losses.
3. Communication networks: Although it is mainly used in electrical energy, It can also be used in some cases in telecommunications lines, as data transmission cables in areas with extreme weather conditions.
4. High humidity and corrosion areas: The corrosion resistance The ACSR Dog makes it an excellent choice for regions where humid conditions or industrial pollution can damage other cables., such as areas near the sea or areas with high pollution.

ACSR Dog Driver Price

The price of ACSR Dog Conductor can vary considerably depending on various factors:

1. Size and diameter: Cables with larger diameter and current capacity tend to be more expensive due to the greater amount of material used to manufacture them..
2. Purchase quantity: Wholesale purchases usually have discounts, so the driver quantity purchased will influence the price per meter.
3. quality material: The quality of steel and aluminum used can also affect the price. Some manufacturers use high quality alloys which can increase the cost of the driver.
4. Installation and maintenance cost: The total cost of an ACSR Dog driver should also include installation and maintenance costs. A stronger or larger diameter conductor may require specialized equipment for installation.

The price of ACSR Dog Conductor can range between 0.9 USD/m, depending on the factors mentioned above.

Installation and Maintenance of the ACSR Dog Conductor

Installation:

Installation of the ACSR Dog driver requires the use of specialized equipment, since an adequate voltage must be maintained to guarantee its operation and avoid damage. Some key steps in the installation process include:

• Evaluation of ground conditions: Before installing the driver, It is important to evaluate the terrain and ensure that the transmission towers are adequate to support the weight and tension of the conductor.
• Driver tension: During the installation, ACSR Dog conductor must be properly tensioned to prevent overstretching or breaking.
• Fixing to towers: The conductor is secured to the towers using insulators and other devices designed to keep the conductor securely in place.

Maintenance:

Maintenance of ACSR Dog drivers is essential to ensure their longevity and performance:

• Periodic inspection: It is important to regularly inspect the driver for signs of wear or damage, such as corrosion or excessive stretching.
• Replacing damaged sections: If damaged sections are detected, It is necessary to replace them immediately to avoid interruptions in electrical service.
• Cleaning: Clean the conductor of contaminants such as saltpeter, Dust or dirt is crucial to maintain your electric driving efficiency.

Conclusion

He ACSR Dog Conductor is a reliable and efficient option for power transmission applications, especially in difficult environments. With its exceptional tensile strength properties, electrical conductivity and corrosion resistance, This conductor is suitable for both long transmission distances and areas with extreme weather conditions. However, when choosing an ACSR Dog driver, It is important to consider its technical specifications, the price, and installation and maintenance costs to guarantee the best option according to the needs of your project..
