Introduction to OHGW Wire

El OHGW (Overhead Ground Wire), also known as aerial ground cable, It is an essential component in electrical transmission systems. Designed to protect power lines from electrical shock and lightning, The OHGW guarantees the safety and reliability of electrical networks. This article provides a detailed overview of the OHGW, your specifications, applications and installation practices.

Dosense Cable it's a manufacturer and supplier leader of cable OHGW, offering high quality solutions for the protection and transmission of overhead power lines.

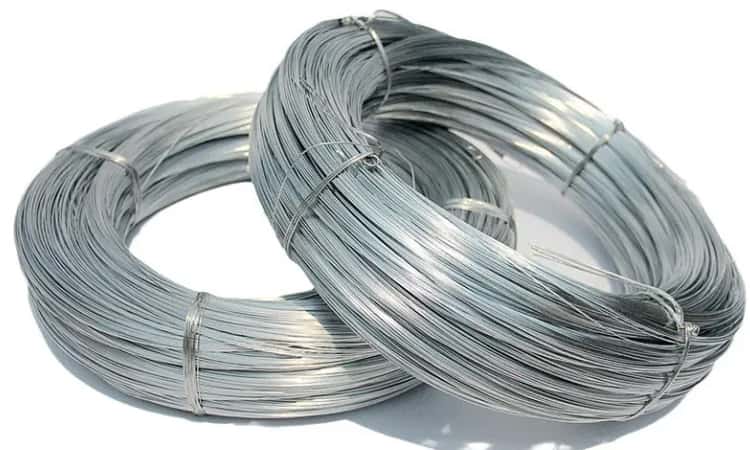

OHGW Wire

What is OHGW?

El OHGW, or overhead ground cable, It is a conductor installed above electrical transmission lines. Its primary purpose is to protect energized conductors from electrical shock by providing a direct path to ground.. In modern systems, some OHGW cables are equipped with optical fibers, called OPGW (Optical Ground Wire), to facilitate communication and data transfer.

Main features of the OHGW:

  1. Material composition: Generally made of galvanized steel, aluminum coated steel or aluminum alloy, ensuring high strength and corrosion resistance.
  2. Conductivity: Provides excellent electrical conductivity to effectively dissipate electrical spikes.
  3. Durability: Designed to withstand adverse weather conditions and mechanical stress.

OHGW Specifications

Understanding technical specifications is essential to selecting the right product for the application. Next, key parameters are described:

1. Types of Materials:

  • Galvanized Steel (GSS): High tensile strength and affordable cost.
  • Aluminum Coated Steel (ACS): Combines high strength with corrosion resistance.
  • Aluminum Alloy: Light and with excellent conductivity.

2. 3/8 OHGW Diameter and Size:

  • Typical sizes range from 3/8 OHGW, 7/8 OHGW, 3/6 OHGW, depending on the application.
  • Smaller diameters are used on lower voltage lines, while the larger ones are for high voltage systems.

3. Tensile Strength:

  • Designed to withstand mechanical loads, with tensile strengths that often exceed 150 kN.

4. Corrosion Resistance:

  • Galvanized or aluminum coatings protect the cable from environmental degradation.

5. Standards Compliance:

  • Generally complies with standards such as ASTM A475 o IEC 60794 to ensure material quality and performance.

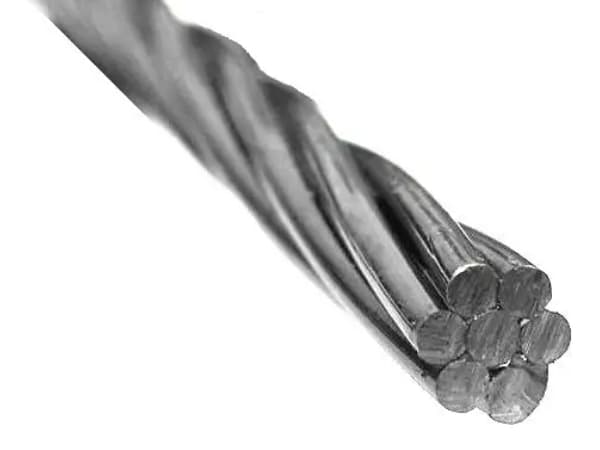

OHGW

OHGW vs OPGW

He OHGW (Overhead Ground Wire) and the OPGW (Optical Ground Wire) They are cables used in the transmission of electrical energy, but with different functions and characteristics.

  • Main Function:
    • OHGW: Its main function is to act as an aerial ground cable to protect transmission lines against lightning and electrical surges.. Acts as a protection system, directing electrical discharges towards the earth.
    • OPGW: Although it also serves as a ground cable, Its distinctive feature is that it integrates optical fibers, allowing data transmission over the same infrastructure used for electrical transmission. This makes it a solution for long-distance communications and real-time monitoring..
  • Composition:
    • OHGW: Generally composed of materials such as galvanized steel or aluminum coated steel, designed to resist mechanical stress and climatic conditions.
    • OPGW: In addition to protective materials, incorporates fiber optic cables that allow the transmission of communication and data signals.
  • Applications:
    • OHGW: It is mainly used for protection of high and medium voltage lines.
    • OPGW: Used on transmission lines where it is necessary to combine protection and communication capabilities, especially in smart grids and monitoring systems.

In summary, while OHGW is more suitable for electrical protection, OPGW offers an integrated solution that combines protection and communication.

OHGW Applications

The OHGW is versatile and fulfills various functions in the electrical infrastructure. Its main applications include:

1. Lightning Protection:

  • Installed above transmission lines, intercepts electrical discharges and directs electrical energy safely to ground.

2. Grounding:

  • Ensures that the electrical system remains grounded, preventing surges and ensuring the safety of equipment and personnel.

3. Communication Networks:

  • OPGW cables combine the functions of grounding and optical communication, being essential for smart grid systems.

4. Power Transmission Lines:

  • Used in high voltage transmission networks (HV) and medium voltage (MV).

5. Railway Electrification:

  • Protects railway systems from electrical surges and ensures stable operations.

best electrical conductors

Advantages of OHGW

  1. Greater Reliability: Minimizes interruptions caused by electrical shock.
  2. Economic: Protect expensive equipment, reducing repair and maintenance costs.
  3. Versatility: Suitable for various voltage levels and environmental conditions.
  4. Integration with OPGW: Allows dual function of grounding and communication.

OHGW Installation

Proper installation of the OHGW is essential to ensure its effectiveness. Next, Key steps and considerations are detailed:

1. Pre-Installation Preparation:

  • Conduct a site survey to determine environmental and structural requirements.
  • Select the appropriate cable type and size based on system specifications.

2. Strain:

  • Use tensioners to apply the correct tension, avoiding the formation of curves or excessive tension.

3. Ground Connections:

  • Connect the OHGW to ground rods or mesh at regular intervals.
  • Ensure all grounding points are securely fastened and corrosion resistant.

4. Inspection and Testing:

  • Inspect the cable for damage or irregularities after installation.
  • Test grounding system to confirm electrical continuity.

5. Maintenance:

  • Regularly inspect the cable for wear.
  • Clean any debris or corrosion to maintain optimal performance.

Challenges in Using OHGW

Despite its advantages, There are challenges associated with OHGW:

1. Environmental Exhibition:

  • Prolonged exposure to adverse weather conditions may degrade the cable over time.

2. Mechanical Stress:

  • High winds or ice accumulation can cause excessive stresses, leading to cable failure.

3. Installation Complexity:

  • Requires specialized equipment and trained personnel for proper installation.

Future Trends in OHGW Technology

As technology evolves, so does functionality. Some emerging trends include:

1. Advanced Materials:

  • Development of high-performance alloys to improve strength and reduce weight.

2. Integration in Smart Networks:

  • Incorporation of sensors in the OHGW to monitor the status of the system in real time.

3. Improved OPGW Designs:

  • Increase in bandwidth and reliability of optical communication in OPGW cables.

Conclusion

OHGW plays an indispensable role in the safety and efficiency of electrical transmission systems. From protection against electric shock to enabling modern communication networks, Its applications are vast and vital. By understanding the specifications, applications and installation practices, engineers and operators can maximize the benefits of OHGW, ensuring a reliable and safe electrical infrastructure for the future.
