Cable AAAC Alton 48.69
What is AAAC Alton Cable 48.69?

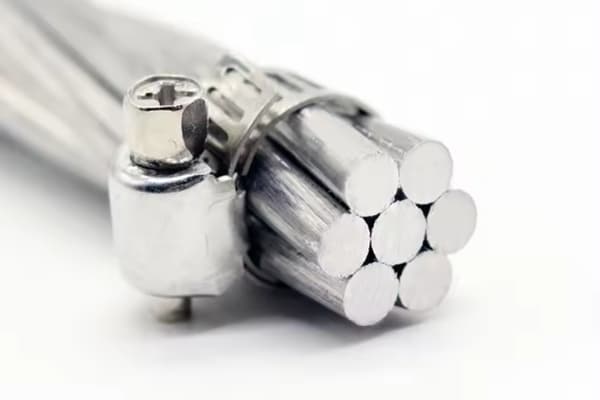

AAAC Alton Cable 48.69 It is commonly used as a bare electrical conductor in power distribution systems, on both the primary and secondary networks. It is designed with a high-strength aluminum alloy, which facilitates its installation and guarantees its reliable operation. The 6201-T81 aluminum alloy used in its manufacture gives it excellent corrosion resistance, which extends its useful life and reduces the need for maintenance, compared to cables like ACSR. This makes it the preferred choice in many electrical transmission and distribution applications..
The Alton driver 48.69 It is composed of aluminum alloy cables, which provide better sinking performance thanks to the high strength-to-weight ratio of 6201-T81 alloy. These cables meet the standards of ASTM B-398 specifications..
AAAC Alton Cable Standard 48.69
B398 6201-T81 Aluminum Alloy Cable for Electrical Purposes.
B399 Concentric Stranded 6201-T81 Aluminum Alloy Conductors.
AAAC Alton Cable technical data 48.69
| Code | Driver size | Stranding | Section area | Driver diameter | linear mass | Rated force | DC resistance to 20 ℃ |
| Kcmil | Number/mm | mm2 | mm | Kg/km | kgf | Oh/km | |
| Alton | 48.69 | 7/2.12 | 24.67 | 6.35 | 67.56 | 799 | 1.58600 |
Alton Applications 48.69
AAAC Alton 48.69 has a variety of applications in electrical distribution systems. Since it is designed with high strength aluminum alloy, Provides a good relationship between strength and weight.
Primary and Secondary Distribution: This type of cable is commonly used in distribution networks to transmit power at the primary and secondary levels in urban or rural areas..
Overhead transmission lines: Akron 30.58 It is used in medium and high voltage overhead transmission lines due to its ability to withstand heavy loads and adverse weather conditions.
Substations: In connection applications between substations, This cable can be used to connect transformers and other electrical equipment.
