Cable AAAC Darien 559.5
What is AAAC Darien Cable 559.5?
Cable AAAC Darien 559.5 It is a common choice for primary and secondary overhead transmission and distribution of energy in power systems..

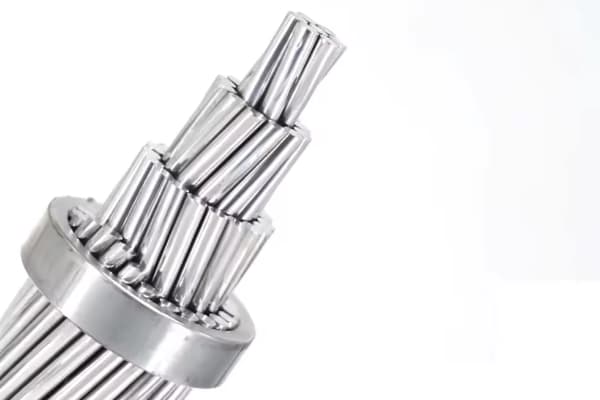

Thanks to the particularly resistant aluminum alloy, The cable core is made of concentrically stranded 6201-T81 aluminum alloy conductors.
AAAC conductors are specifically designed to optimize strength-to-weight ratio, ensuring optimal electrical performance, adequate voltage characteristics and excellent corrosion resistance.
AAAC has a high strength-to-weight ratio, better sinking characteristics, Improved electrical properties and excellent corrosion resistance.
AAAC Darien Cable Standard 559.5
B398 6201-T81 Aluminum Alloy Cable for Electrical Purposes.
B399 Concentric Stranded 6201-T81 Aluminum Alloy Conductors.
AAAC Darien Cable technical data 559.5
| Code | Driver size | Stranding | Section area | Driver diameter | linear mass | Rated force | DC resistance to 20 ℃ |
| Kcmil | Number/mm | mm2 | mm | Kg/km | kgf | Oh/km | |
| Darien | 559.5 | 19/4.36 | 283.50 | 21.79 | 776.30 | 8525 | 0.11810 |
Darien Applications 559.5
Darien 559.5 It has multiple uses in electrical distribution systems, thanks to its design with a high-strength aluminum alloy that offers an exceptional relationship between strength and weight.
Primary and Secondary Distribution: Widely used in electrical distribution networks for energy transmission at primary and secondary levels, whether in urban or rural areas.
Overhead transmission lines: Darien 559.5 It is used in medium and high voltage overhead transmission lines.
Electrical substations: In connection applications between electrical substations, This cable is used to connect transformers and other electrical equipment.
Darien 559.5 It is versatile and finds application in a variety of situations in electrical distribution systems, thanks to its exceptional resistance, lightness and durability against corrosion.
Darien 559.5 It is a reliable and adaptable conductor used in various applications in electrical distribution systems, thanks to its resistance qualities, lightness and corrosion resistance.
