Cable ACSR Brant 397.5MCM
What is Brant 397.5MCM ACSR Cable?
Brant 397.5MCM ACSR Cable is a type of cable used in electrical power transmission and distribution applications.

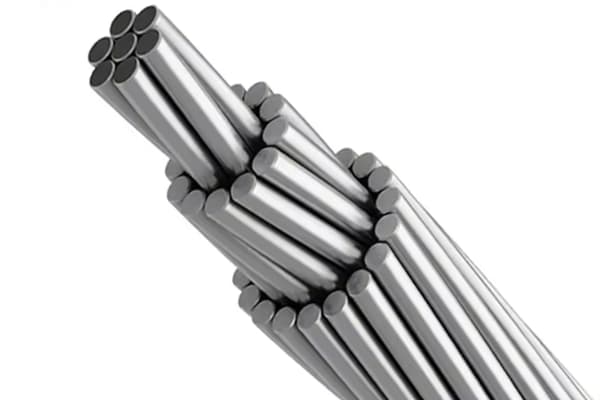

Brant 397.5MCM is an essential element in electrical transmission systems. Its design is characterized by a central core of galvanized steel, which can be modified to achieve the required durability and resistance. The outer layers of the conductor are composed of aluminum, giving the product exceptional durability and corrosion resistance. Besides, Applying grease to the core or entire cable can further increase its corrosion resistance., ensuring reliable and long-lasting performance in various electrical applications.
ACSR Brant Cable Standard 397.5MCM
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Cable ACSR Brant 397.5MCM
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Brant | 397.500 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558.0 | 204.0 | 762.0 |
Brant 397.5MCM Applications
ACSR Brant 397.5MCM is distinguished by its economical design, making it an ideal choice for long distance transmission lines. Its exceptional tensile strength allows it to withstand significant stresses without compromising its structural integrity.. Besides, Features improved buckling properties, ensuring greater stability and efficiency in the transmission of electrical energy over large areas. This cable is the optimal choice for projects that demand resistance, durability and economic efficiency. In summary, The Brant 397.5MCM is versatile and suitable for a variety of applications in electrical transmission systems, where a combination of electrical conductivity and mechanical strength is required to ensure a reliable power supply.
