Cable ACSR Dove 556.5MCM
What is Dove 556.5MCM ACSR Cable?

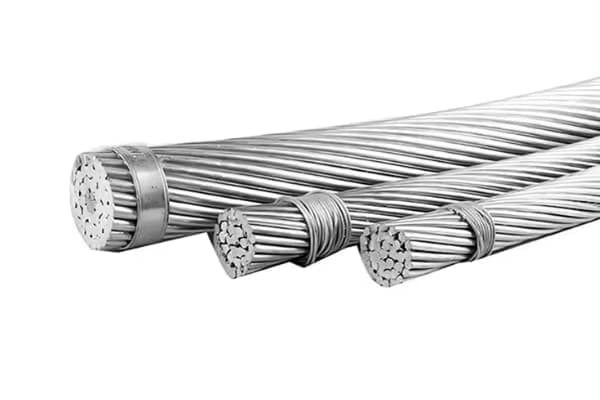

Cable ACSR Dove 556.5MCM, 1350-H19 aluminum wires, concentrically braided around a steel core. Standard core wire for ACSR is class A galvanized.
Class A core braiding is also available with zinc alloy coating, 5% aluminum and mischmetal.
ACSR Dove 556.5MCM Cable Standard
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Cable ACSR Dove 556.5MCM
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Dove | 556.5 | 282.00 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781.0 | 359.0 | 1140.0 |
Design and installation of Dove 556.5MCM
For the design and installation of the Dove 556.5MCM, It is important to take into account several key aspects:
Electrical transmission requirements: The necessary electrical transmission capacity must be determined, including current load, voltage and transmission distance. This will determine the appropriate size Dove 556.5MCM to use..
Environmental conditions: It is essential to consider the environmental conditions of the installation site, like the temperature, humidity, altitude and exposure to elements such as wind and rain. Selecting a cable that is resistant to these conditions will ensure its reliability and durability.
Load capacity and safety factors: According to the load capacity and required safety factors, The appropriate cable size and installation design must be selected to ensure it operates safely and efficiently under rated load conditions..
Installation and distribution path: Define the cable installation route and its distribution, considering whether it will be installed on the ground, underground or aerial, as well as the layout and curve angles to minimize losses and risks of failure.
