Cable ACSR Drake 795MCM
What is Drake 795MCM ACSR Cable??

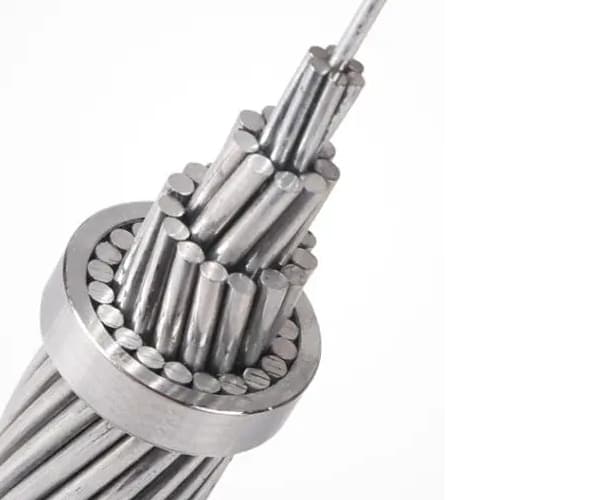

Drake 795MCM ACSR Cable is an essential component in electrical power transmission and distribution applications.. Consists of 1350-H19 aluminum wires arranged concentrically around a standard class A galvanized steel core, although an option with a zinc-5% aluminum-mischmetal alloy coating is also offered.
Its unique design combines the lightness and high conductivity of aluminum with the robustness of the steel core. This allows it to withstand higher stresses, minimize buckling and achieve greater spans than other alternatives available on the market. In summary, Drake 795MCM ACSR Cable is a proven and efficient solution for electrical power transmission and distribution needs in a wide range of environments and applications..
Drake 795MCM ACSR Cable Standard
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Cable ACSR Drake 795MCM
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Drake | 795.00 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1116.0 | 518 | 1628 |
Installation of the Drake 795MCM
Installation aspects:
Compliance with safety regulations: During the installation, It is essential to comply with all applicable safety regulations and standards to protect both workers and the environment.
Cable protection: Take appropriate measures to protect the cable during installation, such as the use of protectors and pipelines to prevent mechanical damage and contamination.
Connections and isolation: Ensure proper connections and proper cable insulation to avoid quality issues and power loss due to faulty connections or inadequate insulation.
quality tests: Perform quality testing and verification after installation to ensure the cable is working properly and meets design and performance requirements.
In summary, Both the design and installation of Dove 556.5MCM ACSR cable require careful consideration of several factors to ensure safe and efficient operation of the electrical transmission system..
