Cable ACSR Ibis 397.5MCM

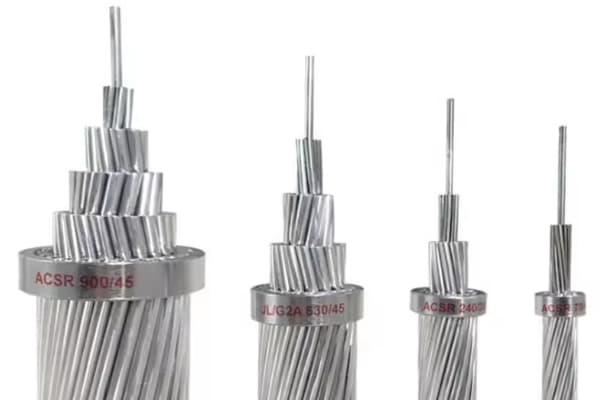

What is ACSR Ibis 397.5MCM Cable?
ACSR Ibis 397.5MCM Cable is suitable for use in all practical spaces on wooden posts, transmission towers and other structures. Its applications range from extra high voltage and long reach transmission lines to sub-service spaces in distribution or utilization voltages on private properties..
Ibis 397.5MCM ACSR Cable has a long service history due to its economy, reliability and strength-to-weight ratio. The combination of light weight and high conductivity of aluminum with the strength of the steel core allows for higher voltages, Less buckling and greater distances than any alternative.
ACSR Ibis 397.5MCM Cable Standard
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Cable ACSR Ibis 397.5MCM
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Ibis | 397.500 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558.0 | 256.0 | 814.0 |
Design and construction of Ibis 397.5MCM
The design and installation of the Ibis 397.5MCM is carefully planned and executed to ensure optimal performance in a variety of applications..
In the design process, several factors are considered, such as transmission distance, the expected electrical load and environmental conditions. This ensures that the cable meets the specific requirements of each project, either for long reach high voltage transmission lines or for lower voltage distribution in local areas.
Cable construction involves precise placement of aluminum and steel conductors, ensuring a strong and long-lasting connection. Advanced manufacturing techniques are used to ensure uniform electrical charge distribution and optimal tensile strength.
During the installation, Meticulous procedures are followed to ensure cable integrity and minimize risks of damage. This may include the use of specialized equipment and expert supervision to ensure the cable is positioned correctly and adjusted as necessary.
In summary, Both the design and construction of the Ibis 397.5MCM are carried out with precision and attention to detail to ensure its reliable and long-lasting operation in a wide range of applications..
