Cable ACSR Osprey 556.5MCM

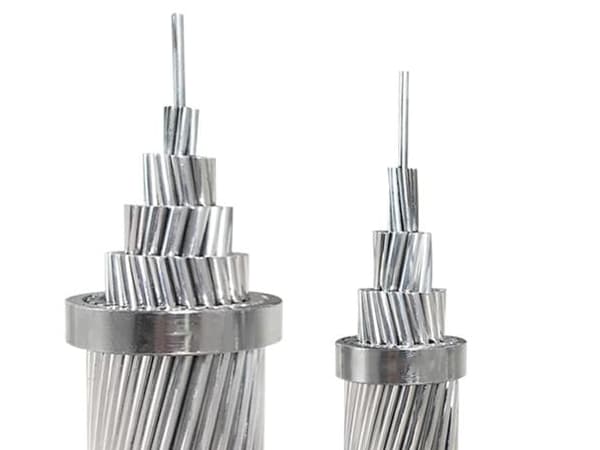

What is Osprey 556.5MCM ACSR Cable?
Osprey 556.5MCM ACSR Cable is a versatile and reliable option for electrical transmission applications. Its unique design makes it suitable for a variety of environments and practical uses. From wooden poles to transmission towers, This cable can be installed in a wide range of structures. Its applications range from extra high voltage and long range transmission lines to sub-service spaces in distribution or utilization voltages on private properties..
This cable has proven to be a durable option over time thanks to its economy, reliability and strength-to-weight ratio. The combination of the high conductivity of aluminum and the resistance of the steel core allows it to withstand higher voltages, reduce buckling and achieve greater distances than any available alternative.
ACSR Osprey 556.5MCM Cable Standard
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Osprey 556.5MCM ACSR Cable
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Osprey | 556.5 | 282.00 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777.0 | 122.0 | 899.0 |
Osprey 556.5MCM Ampacity Design
The ampacity of the Osprey 556.5MCM refers to the maximum current the cable can carry. It is affected by many factors, including material, the diameter, the upper temperature limit and the driver's environmental conditions.
Conductive properties of aluminum cables: aluminum is an excellent conductive material, so ACSR cables usually have high conductivity and can carry higher currents.
Mechanical strength of steel core: Steel core provides mechanical support and strength of the cable.
Room temperature: Design ampacity is also affected by ambient temperature.
Safety factors: to ensure safe and reliable operation of the cable, Certain safety factors are generally considered in the design load capacity to ensure the stable operation of the cable under nominal working conditions..
