Cable ACSR Rail 954MCM
What is ACSR Rail 954MCM Cable?

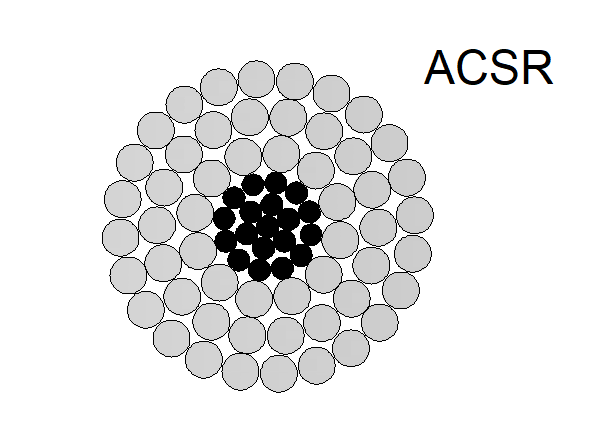

ACSR Rail Cable 954MCM is a specific type of conductor cable used in electrical power transmission systems, indicating that it is composed of a steel core surrounded by aluminum wires. “Rail” is the name assigned to this particular type of driver, while “954MCM” is the measure of its cross-sectional area.
This cable is commonly used in high voltage transmission lines. Its design combines the high conductivity of aluminum with the mechanical resistance provided by the steel core. This allows it to withstand large electrical and mechanical loads., making it suitable for applications requiring efficient transmission of electrical power over long distances.
ACSR Rail Cable Standard 954MCM
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Cable ACSR Rail 954MCM
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | Nominal tensile strength | D.C. Resistance to 20 ℃ Ω/km | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | andN | ||
| Rail | 954.00 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1339.0 | 262 | 1601 | 11585 | 0.05992 |
Rail 954MCM Applications
The design of the ACSR Rail 954MCM Cable is based on the need for a robust and efficient conductor for the transmission of electrical energy over long distances and in demanding conditions..
Aluminum Conductor and Steel Core: The cable uses an aluminum conductor design with a steel core, providing an optimal combination of high electrical conductivity and mechanical strength. Aluminum offers excellent conductivity for energy transmission, while the steel core provides the strength and stability needed to support the weight and stresses of the cable.
Transverse Area of 954MCM: The value of 954MCM indicates the cross-sectional area of the cable.
In summary, The ACSR Rail 954MCM Cable design focuses on offering an optimal combination of electrical conductivity, mechanical strength and energy efficiency to meet the demands of electrical energy transmission in various conditions and applications.
