Cable ACSR Waxwing 266.8MCM
What is Waxwing 266.8MCM ACSR Cable ?

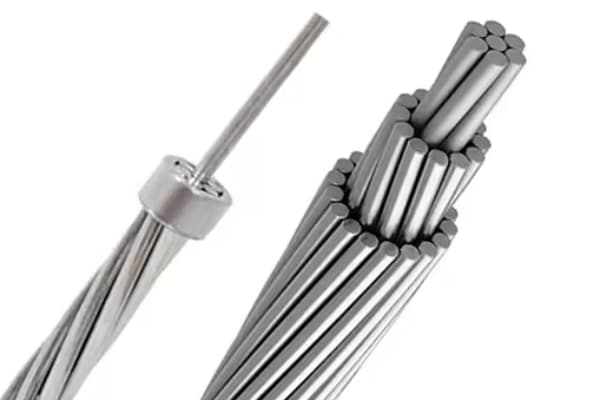

ACSR Waxwing 266.8MCM cable is a type of cable used in electrical transmission systems.
ACSR: “Aluminum Conductor Steel Reinforced”, It is a type of cable that uses a central steel core on which one or more aluminum conductors are wound.. This combination provides both electrical conductivity and mechanical resistance.
Waxwing: This is the specific name of the cable design. Bird names are commonly used to classify different conductor configurations in ACSR cables..
266.8MCM: This is the conductor gauge specification. “MCM” means “Circular Thousands Thousand” , “266.8” indicates a specific size of conductor.
ACSR Waxwing Cable Standard 266.8MCM
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
ACSR Waxwing 266.8MCM cable technical data
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Waxwing | 266.8 | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 373.0 | 58.0 | 431.0 |
Waxwing 266.8MCM Applications
Waxwing 266.8MCM has various applications in electrical transmission systems.
Medium Voltage Transmission Lines: Waxwing 266.8MCM can be used on medium voltage transmission lines to transport electrical power over moderate distances.
Substation Power: It is used to power electrical substations, where you can connect larger transmission systems to the main electrical grid.
Urban Distribution Networks: In urban electrical distribution networks, it can be used to provide electrical power to residential areas, commercial and industrial.
Rural Electrification Projects: It is also used in rural electrification projects to bring electricity to remote areas or rural communities where long distance power distribution lines are needed..
