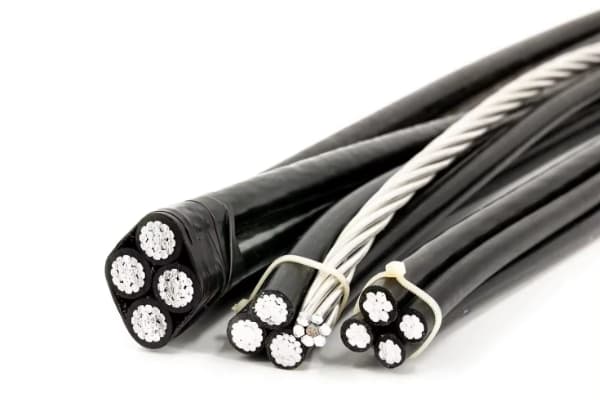

4-4-4-4 Hackney Aluminum XLPE Quadruplex Aerial Service Drop Cable
What is the 4-4-4-4 Hackney aluminio XLPE Cable cuádruplex bajada de servicio aéreo？
4-4-4-4 Hackney aluminio XLPE Cable cuádruplex bajada de servicio aéreo se utilizan en sistemas aéreos de distribución secundaria, in public lighting or in temporary construction facilities, connection with the transformer to the user's socket point or connection with the distribution box.
Quadruplex cables are designed for efficient and reliable overhead electricity distribution. The use of aluminum for phase and neutral conductors guarantees good conductivity and resistance. Cross-linked polyethylene insulation provides durability and resistance to environmental factors such as UV radiation. Compliance with national and international standards ensures that these cables meet the necessary safety and performance criteria.
It is also known as: 4-4-4-4 cuádruplex de aluminio de Hackney XLPE, 4-4-4-4 caída de servicio aérea de Hackney XLPE, 4-4-4-4 cable trifásico de Hackney XLPE, 4-4-4-4 cable trifásico de Hackney XLPE, 4-4 -4-4 cable de alimentación trifásico hackney XLPE, 4-4-4-4 cable de extensión trifásico hackney XLPE, 4-4-4-4 cable de aluminio trifásico hackney XLPE, 4-4-4-4 cable eléctrico trifásico hackney XLPE, 4 -Three-phase power cable 4-4-4 Hackney XLPE, quadruplex cable 4-4-4-4 Hackney XLPE, quadruplex aerial cable 4-4-4-4 Hackney XLPE, service entrance overhead cable 4-4-4-4 Hackney XLPE.
Standard of 4-4-4-4 Hackney Aluminum XLPE Quadruplex Aerial Service Drop Cable
NTC 5346: Specification for insulated cables for aerial secondary distribution
ICEA S-76-474: Standard for neutral supported power cables with nominal voltage of 600 volts or less for overhead distribution
NTC 4334: Standard for concentrically stranded aluminum alloy conductors (AAAC)
ASTM B-400: Standard for aluminum conductors 1350 concentric and compact wiring
NTC 2730: Standard for concentric stranded aluminum conductors (AAC)
ASTM B-399: Standard for 6201-T81 aluminum alloy conductors concentrically stranded
Technical data of 4-4-4-4 Hackney Aluminum XLPE Quadruplex Aerial Service Drop Cable
phase conductor
Material: Aluminum 1350-H19, hard temple, concentric wiring
neutral conductor
Material: Aluminum alloy 6201-T81 (AAAC), support driver, concentric wiring
Isolation
Material: cross-linked polyethylene (XLPE), UV resistant
Phase Driver
Size: 4 AWG
Number of Driver Wires: 7
Insulation Thickness: 0.045 inches
Neutral Driver
Size: 4 AWG
Number of Driver Wires: 6/1
Allowable Amperage Rating
Allowable Amperage Rating: 100 amps
Weight
Weight: 0.241 pounds per foot
Applications of Aluminum Duplex Overhead Service Drop Cable
Aluminum quadruplex overhead service drop cable has various applications in the field of electrical distribution.
Aerial Secondary Distribution:
It is used for the distribution of electrical energy from the transformer to the end users.
Ideal for aerial secondary distribution systems, providing power to residential and commercial areas.
Utility Connections:
Employed in connecting the public electrical distribution network to consumers.
It is used to carry current from distribution lines to the user's facilities.
Street lighting:
Suitable for public lighting installations, where weather resistance and durability are essential.
Contributes to street lighting, roads and public spaces.
Temporary Construction Facilities:
Used on temporary construction sites to provide electrical power during the construction phase.
