H05RN-F 4G1
What is H05RN-F 4G1?

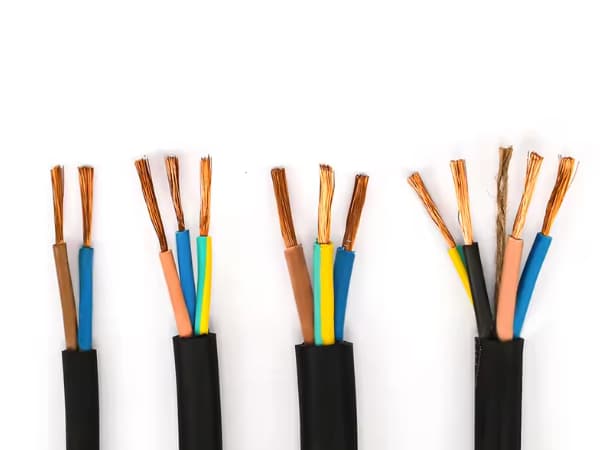

H05RN-F 4G1 is a rubber insulated low voltage cable, designed for flexible applications. It is manufactured according to VDE standard 0282 Part 4.
H05RN-F is a reduced version of the H07RN-F 450/750V cable. These cables have a voltage rating of 300/500V and are offered in smaller conductor cross-sectional sizes.. In this case, Class flexible copper conductors 5 They are available only in sizes 0,75 mm² y 1 mm². They are available in variants of 2, 3 y 4 drivers as standard.
Standard H05RN-F 4G1
IEC/EN 50525-2-21: Low voltage power cables with voltage ratings up to 450/750 V inclusive (U0/U). Part 2-21: Cables for general applications. Flexible cables with cross-linked elastomer insulation.
the 20-107/2-21: Italian standard for low voltage cables, part of the CEI series 20-107.
the 20-19/4: Italian standard for rubber insulated cables, part of the CEI series 20-19.
CENELEC HD 22.4 S4: Harmonized document of the European Committee for Electrotechnical Standardization, specifying requirements for rubber insulated cables.
BS 6500:2000: British standard for flexible cables with voltage ratings up to 300/500 V, covering requirements for rubber or thermoplastic insulated cables.
NF C 32-102-4: French standard for low voltage cables, part of the NF C series 32-102.
VDE 0282-4: German standard specifying requirements for rubber insulated cables.
IN 50575:2014 + EN 50575/A1:2016: European standard specifying the requirements for cables in terms of reaction to fire.
Technical data of H05RN-F 4G1
Number of drivers 4
Conductor cross section 1 mm²
Approximate weight 144 kg/km
Average insulation thickness 0,8 mm
Average sheath thickness 1,5 mm
Minimum outside diameter 9,6 mm
Nominal outside diameter 9,8 mm
Maximum outside diameter 10,0 mm
Nominal voltage Uo/U (One) 450 / 750 V
Maximum admissible rated current 16 A
Maximum DC resistance of the conductor at 20 °C 19,5 ohmios/km
Tension fall, single phase 34,08 V/A.km
H05RN-F Applications
This harmonized cable is suitable for light duty applications subject to low mechanical stress, For both indoor and temporary outdoor installations. Can be used in dry environments, damp and wet.
H05RN-F 4G1 cable is commonly specified in portable home equipment, workshop tools like welders, furniture and in the construction industry, predominantly in prefabricated building parts. It has an operating temperature range of -40 °C a +60 °C and with its outer polychloroprene cover (PCP) It is ozone resistant, oil resistant and flame retardant.
The H05RN-F 4G1 is part of a broader portfolio of rubber cables from 300/500 V which includes the H05RR-F 318-TRS. For applications requiring a higher operating temperature, H05GG-F cable may also be appropriate.
