Cable OPGW
OPGW Cable means Optical Ground Cable. It is a type of cable used in overhead electrical power transmission lines.. The OPGW combines the functions of a ground cable and a fiber optic cable.
The outer layer of OPGW cable is typically a layer of aluminum wires for electrical conductivity, which serves as the ground wire for the power line. Inside this layer, There are optical fibers that transmit data.
The primary purpose of the OPGW is to provide a reliable and efficient means of communication for energy utility companies..
Our optical fibers Dosense Cable can be used for various purposes, as real-time monitoring of power line conditions, remote control of equipment on the lines and high-speed data transmission for communication purposes.

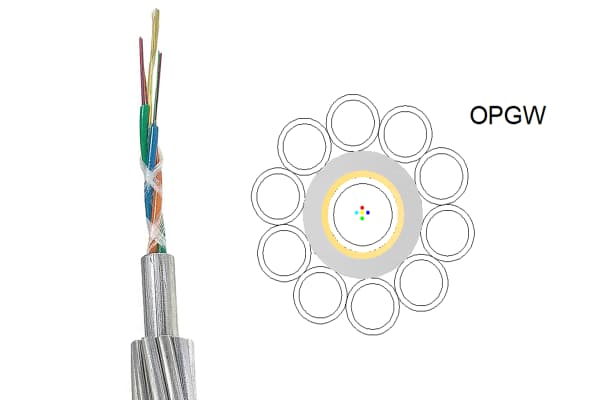

Cable OPGW
OPGW Cable Description
OPGW Cable is a composite cable designed for use in overhead electrical power transmission lines. Combines the functions of a traditional ground cable with optical fibers for communication. The cable structure consists of a central core surrounded by layers of optical fibers and metal wires..
Integration of Power Transmission and Communication: OPGW serves as both a ground wire for electrical conductivity and a communication medium for transmitting data along power transmission lines..
High Strength and Durability: Constructed with materials optimized for strength and durability, OPGW is designed to withstand the mechanical stresses and environmental conditions typical of overhead transmission lines..
Reliable Communication: Optical fibers within the cable ensure reliable communication for applications such as real-time monitoring, remote control and data transmission.
Corrosion Resistance: The outer layers of the cable are designed to resist corrosion, extending the life of the OPGW in harsh outdoor environments.
Simple Installation: OPGW is designed for easy installation on existing power transmission lines, minimizing downtime and installation costs.
OPGW Cable Features
Characteristics
1. Until 144 fibras
2. Cable diameter and weight are approximate with other ground wire. Less additional load on the tower, high tensile strength.
3. The excellent stainless steel tube braiding technology makes the fibers have good excess secondary length and allows the fibers to be free.
movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stresses.
4. The optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resistance performance.
6. The ACSW braided design, AAW and SST provides a broad combination of electrical conductivity and mechanical tensile strength.
Superior lightning resistance
• Less aluminum alloy cables needed (AA) to meet electrical specifications
• More ACS or higher resistance cables can be used
• AA cables can be completely replaced with ACS in some applications
Extruded Aluminum Core Tube
• Good combination of crush and kink resistance
• The central tube can be easily and safely guided to closures without reinforcement
• Easy access to the Superior optical core
Electrical performance
• Aluminum center tube substantially increases conductor cross section
• Improved short circuit capability
OPGW cable parameter
Key name | Structure (No.*Day./AS)n*mm/AS | Area mm2 | Diameter | linear mass | Classified fortaleza | DC endurance | short current capacity | ||
center | Outer layer | AS | Total | mm | Kg/km | KN | Oh/km | KA2S | |
OPGW-24B1-42[54;8.4] | 1×3.0/24B1 | 6×3.0/20AS | 42.41 | 42 | 9 | 309 | 54 | 2.03 | 8.4 |
OPGW-24B1-42[43.5;10.6] | 6×3.0/27AS | 42.41 | 42 | 9 | 281 | 43.5 | 1.53 | 10.6 | |
OPGW-24B1-42[35.5;11.5] | 6×3.0/30AS | 42.41 | 42 | 9 | 268 | 35.5 | 1.37 | 11.5 | |
OPGW-30B1-48[61.4;10.9] | 1×3.2/30B1 | 6×3.2/20AS | 48.25 | 48 | 9.6 | 348 | 61.4 | 1.78 | 10.9 |
OPGW-30B1-48[49.5;13.7] | 6×3.2/27AS | 48.25 | 48 | 9.6 | 315 | 49.5 | 1.34 | 13.7 | |
OPGW-30B1-48[40.3;14.9] | 6×3.0/30AS | 48.25 | 48 | 9.6 | 3.1 | 40.3 | 1.21 | 14.9 | |
OPGW-30B1-51[63.9;12.3] | 1×3.3/30B1 | 6×3.3/20AS | 51.32 | 51 | 9.9 | 368 | 63.9 | 1.68 | 12.3 |
OPGW-30B1-51[52.7;15.5] | 6×3.3/27AS | 51.32 | 51 | 9.9 | 333 | 52.7 | 1.26 | 15.5 | |
OPGW-30B1-51[42.9;16.8] | 6×3.3/30AS | 51.32 | 51 | 9.9 | 318 | 42.9 | 1.14 | 16.8 | |
OPGW-30B1-51[33.2;20.8] | 6×3.3/40AS | 51.32 | 51 | 9.9 | 268 | 33.2 | 0.85 | 20.8 | |
OPGW-36B1-54[67.8;13.9] | 1×3.4/36B1 | 6×3.4/20AS | 54.48 | 54 | 10.2 | 389 | 67.8 | 1.58 | 13.9 |
OPGW-36B1-54[55.9;17.5] | 6×3.4/27AS | 54.48 | 54 | 10.2 | 352 | 55.9 | 1.19 | 17.5 | |
OPGW-36B1-54[45.5;19] | 6×3.4/30AS | 54.48 | 54 | 10.2 | 336 | 45.5 | 1.07 | 19 | |
OPGW-36B1-54[35.2;23.4] | 6×3.4/40AS | 54.48 | 54 | 10.2 | 283 | 35.2 | 0.8 | 23.4 | |
OPGW-40B1-58[69.6;15.6] | 1×3.5/40B1 | 6×3.5/20AS | 57.73 | 58 | 10.5 | 410 | 69.6 | 1.49 | 15.6 |
OPGW-40B1-58[59.2;19.6] | 6×3.5/27AS | 57.73 | 58 | 10.5 | 371 | 59.2 | 1.12 | 19.6 | |
OPGW-40B1-58[48.3;21.3] | 6×3.5/30AS | 57.73 | 58 | 10.5 | 354 | 48.3 | 1.01 | 21.3 | |
OPGW-40B1-58[37.3;26.3] | 6×3.5/40AS | 57.73 | 58 | 10.5 | 298 | 37.3 | 0.76 | 26.3 | |
OPGW-48B1-61[73.7;17.5] | 1×3.6/48B1 | 6×3.6/20AS | 61.07 | 61 | 10.8 | 432 | 73.7 | 1.41 | 17.5 |
OPGW-48B1-61[62.7;22] | 6×3.6/27AS | 61.07 | 61 | 10.8 | 391 | 62.7 | 1.06 | 22 | |
OPGW-48B1-61[51.1;23.8] | 6×3.6/30AS | 61.07 | 61 | 10.8 | 373 | 51.1 | 0.95 | 23.8 | |
OPGW-48B1-61[39.5;29.5] | 6×3.6/40AS | 61.07 | 61 | 10.8 | 313 | 39.5 | 0.72 | 29.5 | |
OPGW-50B1-65[76.6;19.5] | 1×3.7/50B1 | 6×3.7/20AS | 64.51 | 65 | 11.1 | 455 | 76.6 | 1.33 | 19.5 |
OPGW-50B1-65[66.2;24.5] | 6×3.7/27AS | 64.51 | 65 | 11.1 | 411 | 66.2 | 1 | 24.5 | |
OPGW-50B1-65[53.9;26.6] | 6×3.7/30AS | 64.51 | 65 | 11.1 | 392 | 53.9 | 0.9 | 26.6 | |
OPGW-50B1-65[41.7;32.9] | 6×3.7/40AS | 64.51 | 65 | 11.1 | 329 | 41.7 | 0.68 | 32.9 | |
OPGW-54B1-68[80.8;21.7] | 1×3.8/54B1 | 6×3.8/20AS | 68.05 | 68 | 11.4 | 478 | 80.8 | 1.26 | 21.7 |
OPGW-54B1-68[69.8;27.3] | 6×3.8/27AS | 68.05 | 68 | 11.4 | 432 | 69.8 | .0.95 | 27.3 | |
OPGW-54B1-68[56.9;29.6] | 6×3.8/30AS | 68.05 | 68 | 11.4 | 412 | 56.9 | 0.86 | 29.6 | |
OPGW-54B1-68[44;36.6] | 6×3.8/40AS | 68.05 | 68 | 11.4 | 346 | 44 | 0.64 | 36.6 | |
OPGW-60B1-75[86.7;26.6] | 1×4.0/60B1 | 6×4.0/20AS | 75.4 | 75 | 12 | 527 | 86.7 | 1.14 | 26.6 |
OPGW-60B1-75[77.4;33.5] | 6×4.0/27AS | 75.4 | 75 | 12 | 476 | 77.4 | 0.86 | 33.5 | |
OPGW-60B1-75[63;36.3] | 6×4.0/30AS | 75.4 | 75 | 12 | 453 | 63 | 0.77 | 36.3 | |
OPGW-60B1-75[48.7;44.9] | 6×4.0/40AS | 75.4 | 75 | 12 | 380 | 48.7 | 0.58 | 44.9 | |
