Cable OPGW de 24 cores
What is OPGW Cable? 24 cores?

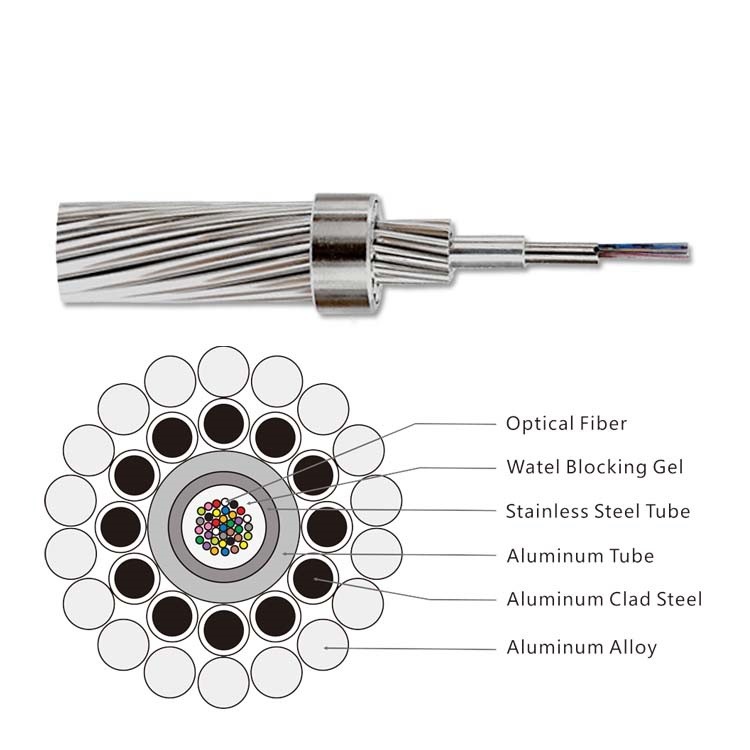

El cable OPGW (Optical Ground Wire) of 24 cores is designed to fully meet the most common needs of power lines. This cable consists of a central optical tube, surrounded by one or two layers of aluminum clad steel wires (ACS) or a combination of ACS and aluminum wires. This construction forms a strong and efficient cable, ideal for both data transmission and grounding of power lines.
Los 24 Fiber optic cores within the OPGW cable offer multiple channels for data transmission, allowing a significant increase in bandwidth and redundancy in communication networks. Thanks to these features, The cable is suitable for applications such as remote monitoring, control systems and telecommunications services along power transmission routes.
OPGW Cable Standard 12 cores
IEC60794-1-2-F2 Temperature Cycles
Tensile strength IEC60794-1-2-E1A
Aplastar IEC60794-1-2-E3
Impacto IEC60794-1-2-E4
Doblado repetido IEC60794-1-2-E6
Torque IEC60794-1-2-E7
IEC60794-1-2-E10 Twist
Curva de cable IEC60794-1-2-E11
Cold curve IEC60794-1-2-E11
Technical data of OPGW Cable 24 cores
Key name | Structure (No.*Day./AS)n*mm/AS | Area mm2 | Diameter | linear mass | Classified fortaleza | DC endurance | short current capacity | ||
center | Outer layer | AS | Total | mm | Kg/km | KN | Oh/km | KA2S | |
OPGW-24B1-42[54;8.4] | 1×3.0/24B1 | 6×3.0/20AS | 42.41 | 42 | 9 | 309 | 54 | 2.03 | 8.4 |
OPGW-24B1-42[43.5;10.6] | 6×3.0/27AS | 42.41 | 42 | 9 | 281 | 43.5 | 1.53 | 10.6 | |
OPGW-24B1-42[35.5;11.5] | 6×3.0/30AS | 42.41 | 42 | 9 | 268 | 35.5 | 1.37 | 11.5 | |
OPGW-30B1-48[61.4;10.9] | 1×3.2/30B1 | 6×3.2/20AS | 48.25 | 48 | 9.6 | 348 | 61.4 | 1.78 | 10.9 |
OPGW-30B1-48[49.5;13.7] | 6×3.2/27AS | 48.25 | 48 | 9.6 | 315 | 49.5 | 1.34 | 13.7 | |
OPGW-30B1-48[40.3;14.9] | 6×3.0/30AS | 48.25 | 48 | 9.6 | 3.1 | 40.3 | 1.21 | 14.9 | |
OPGW-30B1-51[63.9;12.3] | 1×3.3/30B1 | 6×3.3/20AS | 51.32 | 51 | 9.9 | 368 | 63.9 | 1.68 | 12.3 |
OPGW-30B1-51[52.7;15.5] | 6×3.3/27AS | 51.32 | 51 | 9.9 | 333 | 52.7 | 1.26 | 15.5 | |
OPGW-30B1-51[42.9;16.8] | 6×3.3/30AS | 51.32 | 51 | 9.9 | 318 | 42.9 | 1.14 | 16.8 | |
OPGW-30B1-51[33.2;20.8] | 6×3.3/40AS | 51.32 | 51 | 9.9 | 268 | 33.2 | 0.85 | 20.8 | |
OPGW-36B1-54[67.8;13.9] | 1×3.4/36B1 | 6×3.4/20AS | 54.48 | 54 | 10.2 | 389 | 67.8 | 1.58 | 13.9 |
OPGW-36B1-54[55.9;17.5] | 6×3.4/27AS | 54.48 | 54 | 10.2 | 352 | 55.9 | 1.19 | 17.5 | |
OPGW-36B1-54[45.5;19] | 6×3.4/30AS | 54.48 | 54 | 10.2 | 336 | 45.5 | 1.07 | 19 | |
OPGW-36B1-54[35.2;23.4] | 6×3.4/40AS | 54.48 | 54 | 10.2 | 283 | 35.2 | 0.8 | 23.4 | |
OPGW-40B1-58[69.6;15.6] | 1×3.5/40B1 | 6×3.5/20AS | 57.73 | 58 | 10.5 | 410 | 69.6 | 1.49 | 15.6 |
OPGW-40B1-58[59.2;19.6] | 6×3.5/27AS | 57.73 | 58 | 10.5 | 371 | 59.2 | 1.12 | 19.6 | |
OPGW-40B1-58[48.3;21.3] | 6×3.5/30AS | 57.73 | 58 | 10.5 | 354 | 48.3 | 1.01 | 21.3 | |
OPGW-40B1-58[37.3;26.3] | 6×3.5/40AS | 57.73 | 58 | 10.5 | 298 | 37.3 | 0.76 | 26.3 | |
OPGW-48B1-61[73.7;17.5] | 1×3.6/48B1 | 6×3.6/20AS | 61.07 | 61 | 10.8 | 432 | 73.7 | 1.41 | 17.5 |
OPGW-48B1-61[62.7;22] | 6×3.6/27AS | 61.07 | 61 | 10.8 | 391 | 62.7 | 1.06 | 22 | |
OPGW-48B1-61[51.1;23.8] | 6×3.6/30AS | 61.07 | 61 | 10.8 | 373 | 51.1 | 0.95 | 23.8 | |
OPGW-48B1-61[39.5;29.5] | 6×3.6/40AS | 61.07 | 61 | 10.8 | 313 | 39.5 | 0.72 | 29.5 | |
OPGW-50B1-65[76.6;19.5] | 1×3.7/50B1 | 6×3.7/20AS | 64.51 | 65 | 11.1 | 455 | 76.6 | 1.33 | 19.5 |
OPGW-50B1-65[66.2;24.5] | 6×3.7/27AS | 64.51 | 65 | 11.1 | 411 | 66.2 | 1 | 24.5 | |
OPGW-50B1-65[53.9;26.6] | 6×3.7/30AS | 64.51 | 65 | 11.1 | 392 | 53.9 | 0.9 | 26.6 | |
OPGW-50B1-65[41.7;32.9] | 6×3.7/40AS | 64.51 | 65 | 11.1 | 329 | 41.7 | 0.68 | 32.9 | |
OPGW-54B1-68[80.8;21.7] | 1×3.8/54B1 | 6×3.8/20AS | 68.05 | 68 | 11.4 | 478 | 80.8 | 1.26 | 21.7 |
OPGW-54B1-68[69.8;27.3] | 6×3.8/27AS | 68.05 | 68 | 11.4 | 432 | 69.8 | .0.95 | 27.3 | |
OPGW-54B1-68[56.9;29.6] | 6×3.8/30AS | 68.05 | 68 | 11.4 | 412 | 56.9 | 0.86 | 29.6 | |
OPGW-54B1-68[44;36.6] | 6×3.8/40AS | 68.05 | 68 | 11.4 | 346 | 44 | 0.64 | 36.6 | |
OPGW-60B1-75[86.7;26.6] | 1×4.0/60B1 | 6×4.0/20AS | 75.4 | 75 | 12 | 527 | 86.7 | 1.14 | 26.6 |
OPGW-60B1-75[77.4;33.5] | 6×4.0/27AS | 75.4 | 75 | 12 | 476 | 77.4 | 0.86 | 33.5 | |
OPGW-60B1-75[63;36.3] | 6×4.0/30AS | 75.4 | 75 | 12 | 453 | 63 | 0.77 | 36.3 | |
OPGW-60B1-75[48.7;44.9] | 6×4.0/40AS | 75.4 | 75 | 12 | 380 | 48.7 | 0.58 | 44.9 | |
OPGW Cable Features
El Cable OPGW (Optical Ground Wire) It is a key piece in electrical transmission networks.
Protection and Electrical Conduction: It acts as a guard cable, providing a path to ground to protect transmission lines from lightning and fault currents, ensuring the security of electrical infrastructure.
Integrated Optical Fibers: Incorporates optical fibers in its structure, allowing efficient transmission of data over the network. The amount of fibers varies, It is common to find configurations of 12, 24 or more cores, which provides extensive communication capacity.
Integration in Telecommunications Networks: Thanks to optical fibers, the OPGW can be integrated with telecommunications networks, allowing data transmission for applications such as remote monitoring, control of telecommunications systems and services along transmission lines.
