Transformers are essential components in electrical systems. there are many types of transformers. that allow the transfer of electrical energy between circuits through electromagnetic induction. Their versatility and functionality make them indispensable in various industries.. In this guide, we explore the types of transformers, Its applications and benefits.
What is a transformer?
And transformer It is an electrical device that changes the voltage of an alternating current source (CA). By increasing or decreasing voltage levels, Transformers allow efficient distribution of energy from generation plants to end users. Transformers consist of primary and secondary windings and work on the principle of electromagnetic induction.
Types of Transformers
Transformers are classified based on several factors, including voltage, construction, the purpose and methods of cooling. Next, The main types of transformers are shown.
1.Step-up and step-down transformers
Step-up transformers
Purpose: increase the voltage from the primary winding to the secondary winding.
Applications: They are used in power generating stations to transmit electricity over long distances.
Step down transformers
Purpose: Decrease the voltage from the primary winding to the secondary winding.
Applications: They are found in homes and industries to reduce high transmission voltages to usable levels.
2.power transformers
Purpose: Transfer electrical energy between high voltage circuits.
Applications: They are commonly used in transmission networks.
Characteristics: Large capacity, High efficiency and designed for continuous operation.
3.Distribution transformers
Purpose: Reduce voltage for distribution to residential users, commercial or industrial.
Applications: They are found on utility poles and in industrial facilities.
Characteristics: Lower capacity compared to power transformers and optimized for load fluctuations.
4.Instrument transformers
current transformers (TC)
Purpose: Measure high currents by reducing them to manageable levels for instruments and meters.
Applications: They are used in protection relays and monitoring systems.
Potential transformers (TP)
Purpose: Reduce voltage levels for measurement and protection.
Applications: They are used in electrical protection and measurement systems.
5.Isolation transformers
Purpose: Isolate two circuits electrically while transferring power.
Applications: Provide security on sensitive equipment by preventing DC leakage (CC).
6.Automatic transformers
Purpose: Adjust voltage levels without isolating circuits.
Applications: Used in applications requiring variable voltage levels.
Characteristics: Compacts, profitable and efficient.
7.Three-phase and single-phase transformers

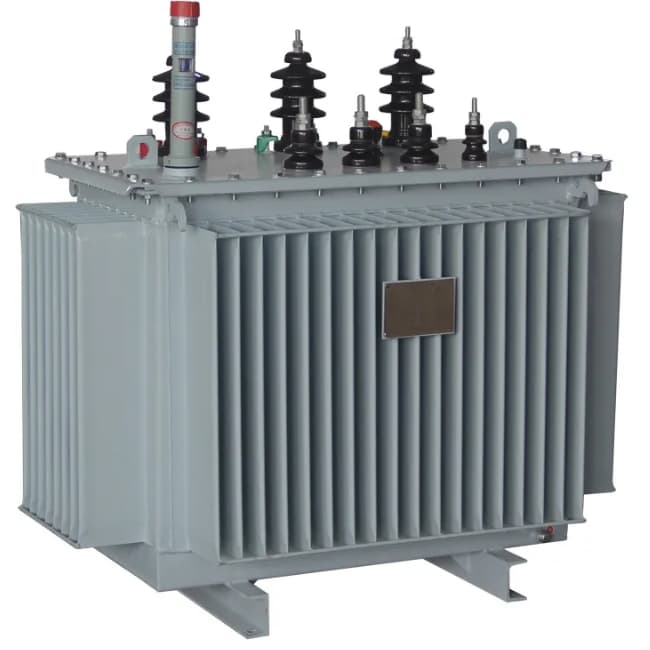

Three-phase transformers
Purpose: Handle three-phase power for industrial and commercial applications.
Applications: Found in industrial and power distribution systems.

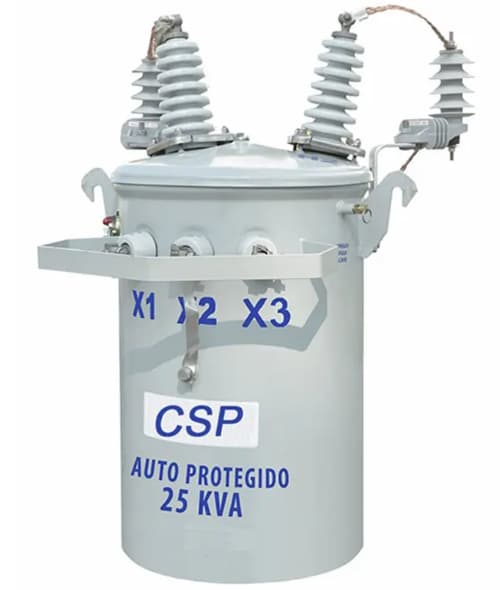

Single phase transformers
Purpose: Supply single-phase power for residential and small commercial use.
Applications: They are commonly used in home appliances and lighting systems.
8. Transformers for special purposes
Furnace transformers
Purpose: Supply power to electric ovens.
Applications: They are used in industries such as steel production and glass manufacturing.
rectifier transformers
Purpose: Supply power to rectifiers for DC applications.
Applications: Found in traction and electrolysis systems.
Traction transformers
Purpose: Supply power to railway systems.
Applications: They are used in electric trains and urban transit systems.
9.Oil Cooled and Dry Type Transformers

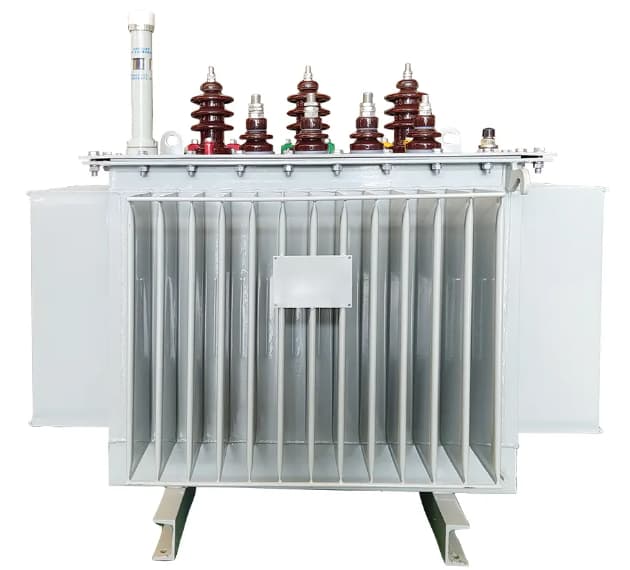

oil cooled transformers
Cooling method: Use oil for insulation and cooling.
Applications: Ideal for outdoor installations.
dry type transformers
Cooling method: Use air instead of oil.
Applications: Suitable for indoor installations where the risk of fire must be minimized.
10.toroidal transformers
Purpose: Reduce electromagnetic interference (EMI).
Applications: They are used in medical devices, audio and telecommunications systems.
Transformer Applications
1.Energy generation and transmission
Transformers play a critical role in stepping up voltage for transmission and stepping down for distribution..
2.Industrial applications
Transformers are used in manufacturing processes, welding and electroplating.
3.Renewable energy
Transformers convert power generated by wind turbines and solar panels to grid-compatible voltage levels.
4.Residential and commercial use
5.Railway systems
From powering household appliances to lighting systems, transformers guarantee a constant and safe power supply.
Traction transformers provide efficient power to electric trains and subway systems.
Key Features of Transformers
1.Efficiency
High quality transformers have minimal energy losses.
2.Durability
Transformers are designed to withstand environmental conditions and operate continuously.
3.Flexibility
Various types of transformers meet different voltage needs, capacity and application.
Advances in transformer technology
1. Smart Transformers
Smart transformers improve energy efficiency by optimizing power distribution.
2. Eco-Friendly Transformers
Modern designs use biodegradable oils and low-loss materials to reduce environmental impact.
3. High-Temperature Superconducting Transformers (HTS)
HTS transformers offer reduced energy losses and compact designs, making them ideal for urban environments.
Transformer Manufacturers and Suppliers
Major transformer manufacturers include:
Dosense: world leader in industrial automation and power systems, produces a wide range of transformers for industrial and residential applications.
Transformers price
The price of transformers depends on several factors, as:
Voltage and capacity: transformers with higher voltages and capacities tend to be more expensive.
Transformer type: specialized transformers, such as furnace transformers or traction transformers, They are usually more expensive than general purpose distribution transformers.
Material: the cost of materials, like copper, steel and oil, can affect the price of the transformer.
Brand and manufacturer: Established brands tend to offer higher priced transformers due to the quality of their products and after-sales support.
Price range
Small distribution transformers: They can range between $500 y $2000 depending on size and voltage.
power transformers: They usually have a price between 10 000 y 50 000 dollars for high capacity models.
Transformers for special uses: Prices for specialized transformers can exceed 100 000 dollars, depending on its complexity and application.
Transformers are essential devices in the modern electrical system, that guarantee efficient and safe energy distribution in industries, homes and commercial establishments. Understand the different types of transformers, Their applications and pricing can help you make informed decisions when selecting a transformer for your needs.. Whether for industrial use, renewable energy integration or energy transmission, Transformers play a vital role in supplying energy to the world.
